Unlocking the Secrets of Parallel Resistors

1. Understanding Resistance

Ever wondered what happens when you team up three 15-ohm resistors and connect them in parallel? It's not just about stacking components; it's about creating a new electrical path with a unique resistance value. Think of it like opening multiple lanes on a highway. More lanes mean less traffic congestion, right? Similarly, more parallel paths mean less resistance to the flow of electrical current.

Resistance, in essence, is the opposition to the flow of current. Measured in ohms (), it dictates how much voltage is needed to push a certain amount of current through a component. A higher resistance means you need more voltage to get the same current flowing. Now, let's see how connecting resistors in parallel affects this.

So, why do we even care about parallel resistors? Well, they're incredibly useful in electronics for creating specific resistance values that aren't readily available as single components. They're also used to distribute current more evenly across a circuit, preventing any one component from being overloaded. It's like sharing the load amongst friends, ensuring everyone's doing their part without getting burnt out.

Imagine you need a 5-ohm resistor for a project, but all you have are 15-ohm resistors. No problem! Connect three of them in parallel, and voila! You've got your 5-ohm equivalent. Pretty neat, huh? This is just one example of the many ways parallel resistors can be used to manipulate and control electrical circuits.

2. The Parallel Resistance Formula

Alright, let's get down to brass tacks. How do we actually calculate the total resistance of resistors in parallel? Don't worry, it's not rocket science. The formula might look a little intimidating at first, but trust me, it's easier than making toast (well, almost).

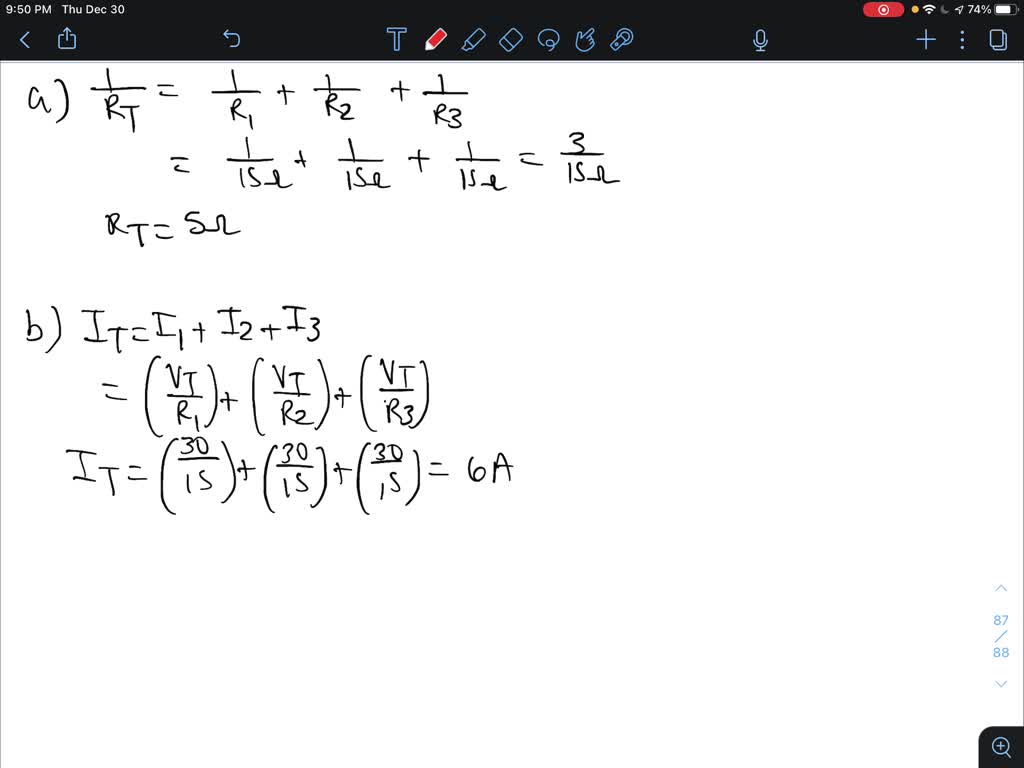

The formula for calculating the total resistance (R_total) of resistors in parallel is: 1/R_total = 1/R₁ + 1/R₂ + 1/R₃ + ... and so on, depending on the number of resistors. In our case, we have three 15-ohm resistors, so the formula becomes: 1/R_total = 1/15 + 1/15 + 1/15.

Let's plug in the numbers. 1/15 + 1/15 + 1/15 = 3/15 = 1/5. Therefore, 1/R_total = 1/5. To find R_total, we simply take the reciprocal of 1/5, which is 5. So, the total resistance of three 15-ohm resistors connected in parallel is 5 ohms!

See? Not so scary after all. The key is to remember that you're dealing with reciprocals. First, you add the reciprocals of each resistor's value. Then, you take the reciprocal of the result to get the total parallel resistance. Practice it a few times, and you'll be calculating parallel resistance like a pro in no time.

3. Practical Applications

So, now that we know how to calculate the total resistance, let's explore some real-world scenarios where parallel resistors come in handy. It's not just theoretical mumbo jumbo; these components play a crucial role in a wide range of electronic devices.

One common application is in LED circuits. LEDs require a specific amount of current to operate correctly. By using a parallel resistor with the LED, you can fine-tune the current flowing through the LED, ensuring it's neither too dim nor burns out prematurely. It's like giving the LED the perfect "diet" to keep it happy and healthy.

Another application is in voltage dividers. While series resistors are more commonly used for voltage division, parallel resistors can be incorporated to create specific voltage ratios or to adjust the overall resistance of the divider. It's like having multiple levers to control the voltage output, giving you greater flexibility in your circuit design.

Audio amplifiers also utilize parallel resistors for various purposes, such as setting the gain of the amplifier or providing a specific load impedance. By carefully selecting the values of the parallel resistors, engineers can optimize the performance of the amplifier for different types of audio signals. Think of it as fine-tuning the sound quality to achieve the perfect listening experience.

4. Beyond the Basics

While the formula we discussed provides a good approximation of the total resistance, there are some additional factors that can influence the actual resistance in real-world scenarios. It's like cooking; the recipe is a good guide, but you still need to consider factors like altitude and humidity.

One factor is the tolerance of the resistors themselves. Resistors aren't perfectly accurate; they have a tolerance rating that indicates the percentage by which their actual resistance can deviate from their stated value. When resistors with different tolerances are connected in parallel, the overall resistance can be slightly different from the calculated value.

Temperature can also affect the resistance of a resistor. As the temperature increases, the resistance typically increases as well. This effect is more pronounced in some types of resistors than others. Therefore, it's important to consider the operating temperature range of the circuit when designing with parallel resistors.

Finally, the quality of the connections between the resistors can impact the overall resistance. Poor connections can introduce additional resistance, leading to inaccurate readings. It's crucial to ensure that the resistors are properly soldered or connected to the circuit to minimize any unwanted resistance.

5. FAQ

Still have some questions swirling around in your head? Don't worry, we've got you covered. Here are some frequently asked questions about parallel resistors:

Q: What happens if one of the resistors in parallel fails (opens)?

A: If one of the resistors opens (meaning it no longer conducts electricity), the total resistance of the parallel circuit increases. The current will then redistribute through the remaining resistors. However, if the circuit was designed to operate at a specific total resistance, the change in resistance due to the open resistor might cause issues with the circuit's functionality.

Q: Can I connect resistors with different ohm values in parallel?

A: Absolutely! You can connect resistors with different values in parallel. The formula we discussed still applies: 1/R_total = 1/R₁ + 1/R₂ + 1/R₃ + ... Just remember to plug in the correct values for each resistor. The resulting total resistance will always be lower than the lowest individual resistance value.

Q: Why is the total resistance of parallel resistors always less than the smallest individual resistance?

A: Think of it like adding more paths for the current to flow. Each resistor provides an additional path, reducing the overall opposition to current flow. The more paths available, the easier it is for the current to flow, resulting in a lower total resistance.

Q: Are there any drawbacks to using parallel resistors?

A: While parallel resistors are incredibly useful, there are a few potential drawbacks to consider. One is that they can consume more power than a single resistor with the same equivalent resistance. Another is that they can take up more physical space on a circuit board. However, the benefits often outweigh these drawbacks, especially when you need to achieve a specific resistance value or distribute current more evenly.
